Beginner
An easy way to start using the SWAP-IT software components is defining a simple PFDL description, which executes a single service. For the beginner’s tutorial, a PFDL is specified that takes a part out of a warehouse. For this to be accomplished, the definition of a set of PFDL structures is required to create the Demonstration Scenario’s SWAP_Order structure. This structure will be reused in the additional tutorials and is handed over from process step to process step, to map the parameter flow of the process. The Demonstration Scenario’s industrial traffic light is composed of stand segments and a number of light segments, so that corresponding PFDL structures are defined to characterize each element.
Beginner: Writing custom PFDL files
For the beginner tutorial, the PFDL structure SWAP_Order is defined that contains all information about the traffic light to be produced. It is the input and output variable for each process step to enable the parameter flow throughout the process. The required PFDL is defined as:
Struct SWAP_Order
order_id:number
stand:Stand_Segment
segments: Light_Segment[]
number_light_segments: number
End
Struct Stand_Segment
stand_shape:string
stand_height:number
stand_id:string
End
Struct Light_Segment
color: string
diameter: number
segment_id:string
End
#structure to statically assign the service to a resource
#this structure is only uses by the execution engine internally,
#so it does not have to be defined
#within the OPC UA namespace for the warehouse server
Struct ResourceAssignment
job_resource:string
End
#production Task the defines the overall process
Task productionTask
#define a single service GetPartsFromWarehouse
GetPartsFromWarehouse
In
ResourceAssignment
{
"job_resource":"opc.tcp://host.docker.internal:4840"
}
SWAP_Order
{
"order_id":1000,
"stand":{
"stand_shape":"plate",
"stand_height":3,
"stand_id": "Default"
},
"segments":
[
{
"color": "red",
"diameter": 5,
"segment_id": "Default"
},
{
"color": "green",
"diameter": 5,
"segment_id": "Default"
}
],
"number_light_segments": 1
}
Out
order:SWAP_Order
End

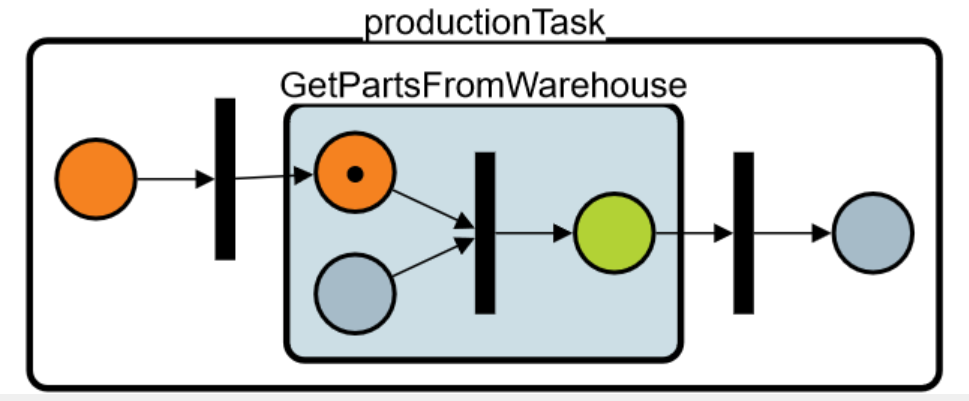

The visual representation of the resulting process is illustrated below:
Beginner: Building Resource-specific Information Models
The pre-build Nodeset2.xml files for each namespace in this tutorial can be found within the directory InformationModels. However, if it is planned to use the pre-build files, this section can be skipped and the tutorial continues with section Beginner: Build custom OPC UA Server, however the following sections give a short introduction on how to define *.ModelDesign.xml files, which can then be processed with the UA-ModelCompiler to generate NodeSet2.xml files.
Beginner: Build custom OPC UA Server
The following sections will provide a step-by-step example on how to start an OPC UA server that can interact with the SWAP-IT software modules.
Beginner: Writing a JSON-configuration file
To use the open62541 server template, it is required to provide a JSON-based server configuration. A minimal version of such a JSON configuration for the warehouse server is shown below:
{
application_name: "warehouse",
resource_ip: "localhost",
port: "4840",
module_type: "WarehouseModuleType",
module_name: "WarehouseModule",
service_name: "GetPartsFromWarehouse"
}
Beginner: CMake Configuration
To load the previously defined OPC UA namespaces into open62541 based OPC UA server, it is required to configure the CMakeLists.txt file. From this CMake configuration the open62541 nodeset compiler will generate executable C-code.
An example of such a CMakeLists.txt file is illustrated below:
cmake_minimum_required(VERSION 3.0.0)
#set name of the CMakeProject
project(beginner_tutorial)
find_package(open62541 1.3 REQUIRED)
if(NOT CMAKE_PROJECT_NAME STREQUAL PROJECT_NAME)
# needed or cmake doesn't recognize dependencies of generated files
set(PROJECT_BINARY_DIR ${CMAKE_BINARY_DIR})
endif()
#define the path to the directory in which the
set(PATH_TO_INFORMATION_MODELS ${PROJECT_SOURCE_DIR}/model)
#set output directory
set(GENERATE_OUTPUT_DIR "${CMAKE_BINARY_DIR}/src_generated/")
include_directories("${GENERATE_OUTPUT_DIR}")
#generate c code from the common model
ua_generate_nodeset_and_datatypes(
NAME "common"
FILE_BSD "${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Common.Model.Types.bsd"
FILE_CSV "${PATH_TO_INFORMATION_MODELS}/CommonModelDesign.csv"
FILE_NS "${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Common.Model.NodeSet2.xml"
NAMESPACE_MAP "2:http://common.swap.fraunhofer.de"
OUTPUT_DIR ${GENERATE_OUTPUT_DIR}
INTERNAL
)
#generate c code from the pfdl types model
ua_generate_nodeset_and_datatypes(
NAME "pfdl_parameter"
FILE_BSD "${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Demo.Scenario.Model.Types.bsd"
FILE_CSV "${PATH_TO_INFORMATION_MODELS}/DemoScenarioTypes.ModelDesign.csv"
FILE_NS "${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Demo.Scenario.Model.NodeSet2.xml"
NAMESPACE_MAP "3:http://swap.demo.scenario.fraunhofer.de"
OUTPUT_DIR ${GENERATE_OUTPUT_DIR}
INTERNAL
)
#generate c code from the warehouse model and set the dependencies to the common and pfdl types models
ua_generate_nodeset_and_datatypes(
NAME "warehouse"
DEPENDS "common"
DEPENDS "pfdl_parameter"
FILE_BSD "${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Demo.Scenario.Warehouse.Model.Types.bsd"
FILE_CSV "${PATH_TO_INFORMATION_MODELS}/DemoScenarioWarehouse.ModelDesign.csv"
FILE_NS "${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Demo.Scenario.Warehouse.Model.NodeSet2.xml"
IMPORT_BSD "TYPES_COMMON#${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Common.Model.Types.bsd"
IMPORT_BSD "TYPES_PFDL_PARAMETER#${PATH_TO_INFORMATION_MODELS}/SWAP.Fraunhofer.Demo.Scenario.Model.Types.bsd"
NAMESPACE_MAP "4:http://swap.demo.scenario.warehouse.fraunhofer.de"
OUTPUT_DIR ${GENERATE_OUTPUT_DIR}
INTERNAL
)
#adds the executable target
add_executable(beginner_tutorial
beginner.c
${UA_NODESET_PFDL_PARAMETER_SOURCES}
${UA_TYPES_PFDL_PARAMETER_SOURCES}
${UA_NODESET_COMMON_SOURCES}
${UA_TYPES_COMMON_SOURCES}
${UA_NODESET_WAREHOUSE_SOURCES}
${UA_TYPES_WAREHOUSE_SOURCES}
)
#add the dependencies between the beginner tutorial and the generated namespaces
add_dependencies(beginner_tutorial open62541-generator-ns-common
open62541-generator-ns-pfdl_parameter
open62541-generator-ns-warehouse
)
#link the beginner tutorial project with the installed open62541 server template
target_link_libraries(beginner_tutorial swap_server_template)
#link the beginner tutorial project with the installed open62541 SDK
target_link_libraries(beginner_tutorial open62541::open62541)
Beginner: Build simple server
To build the first OPC UA server that is compatible with the SWAP-IT software, the open62541 server template is used. This template builds the internal server structure that is required by the process agent. In addition, it is required to define a custom method callback for the GetPartsFromWarehouse service:
#include <stdio.h>
#include "signal.h"
#include <open62541/plugin/log_stdout.h>
#include <open62541/server.h>
/*include the open62541 server template library*/
#include "swap_it.h"
/*include the generated c code from the nodeset compiler*/
#include "namespace_common_generated.h"
#include "namespace_pfdl_parameter_generated.h"
#include "namespace_warehouse_generated.h"
#include "types_common_generated.h"
#include "types_pfdl_parameter_generated_handling.h"
#include "types_common_generated_handling.h"
#include "warehouse_nodeids.h"
UA_StatusCode warehousemethodCallback(UA_Server *server,
const UA_NodeId *sessionId, void *sessionHandle,
const UA_NodeId *methodId, void *methodContext,
const UA_NodeId *objectId, void *objectContext,
size_t inputSize, const UA_Variant *input,
size_t outputSize, UA_Variant *output){
//set output variable for the Service finished event
UA_SWAP_Order order;
UA_SWAP_Order_init(&order);
order.number_light_segments = 5;
order.order_id = 1000;
order.segmentsSize = 2;
UA_Light_Segment *segments = (UA_Light_Segment *) UA_calloc(2, sizeof(UA_Light_Segment));
segments[0].diameter = 5;
segments[0].color = UA_String_fromChars("red");
segments[0].segment_id = UA_String_fromChars("Default");
segments[1].diameter = 5;
segments[1].color = UA_String_fromChars("green");
segments[1].segment_id = UA_String_fromChars("Default");
UA_Stand_Segment stand;
UA_Stand_Segment_init(&stand);
stand.stand_height = 3;
stand.stand_shape = UA_String_fromChars("plate");
stand.stand_id = UA_String_fromChars("Default");
order.stand = stand;
order.segments = segments;
//print the specified parameter
UA_String out = UA_STRING_NULL;
UA_print(&order, &UA_TYPES_PFDL_PARAMETER[UA_TYPES_PFDL_PARAMETER_SWAP_ORDER], &out);
printf("Order Variable: %.*s\n", (int)out.length, out.data);
UA_String_clear(&out);
UA_Variant temp;
UA_Variant_init(&temp);
UA_Variant_setScalarCopy(&temp, &order, &UA_TYPES_PFDL_PARAMETER[UA_TYPES_PFDL_PARAMETER_SWAP_ORDER]);
//fire the service result event
UA_NodeId eventOutNodeId;
UA_NodeId_init(&eventOutNodeId);
UA_Server_createEvent(server, UA_NODEID_NUMERIC(4, UA_WAREHOUSEID_GETPARTSFROMWAREHOUSE), &eventOutNodeId);
UA_Server_writeObjectProperty_scalar(server, eventOutNodeId,
UA_QUALIFIEDNAME(4, "order"), &order, &UA_TYPES_PFDL_PARAMETER[UA_TYPES_PFDL_PARAMETER_SWAP_ORDER]);
UA_LOG_INFO(UA_Log_Stdout, UA_LOGCATEGORY_USERLAND, "Trigger the event");
UA_Server_triggerEvent(server, eventOutNodeId, UA_NODEID_NUMERIC(0, UA_NS0ID_SERVER), NULL, UA_TRUE);
UA_NodeId_clear(&eventOutNodeId);
//create the ServiceExecutionAsyncResultDataType variable
UA_ServiceExecutionAsyncResultDataType res;
UA_ServiceExecutionAsyncResultDataType_init(&res);
res.serviceResultCode = (UA_UInt32) 1;
res.serviceResultMessage = UA_String_fromChars("Message");
res.expectedServiceExecutionDuration = (UA_Double) 7;
res.serviceTriggerResult = UA_SERVICETRIGGERRESULT_SERVICE_RESULT_ACCEPTED;
//set the variable as method output
UA_Variant_setScalarCopy(output, &res, &UA_TYPES_COMMON[UA_TYPES_COMMON_SERVICEEXECUTIONASYNCRESULTDATATYPE]);
UA_String_clear(&res.serviceResultMessage);
//free allocated memory
free(order.segments);
return UA_STATUSCODE_GOOD;
}
Finally, it is possible to write the main function of the server, where the three information models, the common information model, the pfdl parameter model and the warehouse model are loaded. Besides the JSON configuration is provided, so that the server can be instantiated with the open62541 swap server template’s function UA_server_swap_it:
UA_Boolean running = true;
static void stopHandler(int sign) {
UA_LOG_INFO(UA_Log_Stdout, UA_LOGCATEGORY_SERVER, "received ctrl-c");
running = false;
}
int main() {
signal(SIGINT, stopHandler);
signal(SIGTERM, stopHandler);
/* create the server structure*/
UA_Server *server = UA_Server_new();
/* load the required namespace with autogenerated functions from the nodeset-compiler*/
UA_StatusCode retval = namespace_common_generated(server);
if(retval != UA_STATUSCODE_GOOD) {
UA_LOG_WARNING(UA_Log_Stdout, UA_LOGCATEGORY_SERVER, "Adding the common namespace failed. Please check previous error output.");
UA_Server_delete(server);
}
retval = namespace_pfdl_parameter_generated(server);
if(retval != UA_STATUSCODE_GOOD) {
UA_LOG_ERROR(UA_Log_Stdout, UA_LOGCATEGORY_SERVER, "Adding the pfdl types namespace failed. Please check previous error output.");
UA_Server_delete(server);
}
retval = namespace_warehouse_generated(server);
if(retval != UA_STATUSCODE_GOOD) {
UA_LOG_ERROR(UA_Log_Stdout, UA_LOGCATEGORY_SERVER, "Adding the pfdl types namespace failed. Please check previous error output.");
UA_Server_delete(server);
}
/*store the JSON config in a UA_ByteString to hand it over to the UA_server_swap_it function*/
UA_ByteString conf = UA_String_fromChars("{\n"
" application_name: \"warehouse_dr1\",\n"
" resource_ip: \"localhost\",\n"
" port: \"4840\",\n"
" module_type: \"WarehouseModuleType\",\n"
" module_name: \"WarehouseModule\",\n"
" service_name: \"GetPartsFromWarehouse\",\n"
"}"); /*loadFile(path_to_config);*/
/* the structure UA_service_server_interpreter will return the pre-defined information about the server
* from the json configuration*/
UA_service_server_interpreter swap_server;
memset(&swap_server, 0, sizeof(UA_service_server_interpreter));
/* with the function UA_server_swap_it from the open62541 server template,
* it is possible to configure the OPC UA server with a single function call*/
UA_server_swap_it(server, conf, warehousemethodCallback, UA_FALSE, &running, UA_FALSE, &swap_server);
UA_ByteString_clear(&conf);
/*start and run the server*/
UA_Server_run_startup(server);
while(running) {
UA_Server_run_iterate(server, true);
}
//clear memory
clear_swap_server(&swap_server, UA_FALSE, server);
UA_LOG_INFO(UA_Log_Stdout, UA_LOGCATEGORY_SERVER,"Shutting down server %s ", swap_server.server_name);
/*Shut down the server*/
UA_Server_run_shutdown(server);
UA_Server_delete(server);
}
Beginner: Build the Server Executable
After the code is completed, it is now possible to compile the server executable. For this to be achieved, a build directory within the working directory must be created and the server executable can be compiled with the cmake and make command.
cd working directory
mkdir build && cd build
cmake ..
make
/*start the executable*/
./beginner_tutorial
In case that the shop floor should be started from the tutorial implementation, execute the following steps:
git clone https://github.com/swap-it/demo-scenario.git
cd demo-scenario/Tutorials/beginner
mkdir build && cd build
cmake ..
make
/*start the executable*/
./beginner_tutorial
Beginner: Execute the PFDL with an Execution Engine
Two approaches are possible to test the server of the beginner tutorial with a process agent. First, the process Agent Repository can be cloned and locally executed, or a pre-build docker-environment can be deployed.
Beginner: Start from Docker
For the Docker approach, an image of the process agent and the dashboard are provided. A corresponding Docker-compose.yaml file is available in the beginner directory. This docker application can be started with the following steps, so that the beginner tutorial PFDL and the corresponding process is executed on the resource, which is implemented in this tutorial:
git clone https://github.com/swap-it/demo-scenario.git
cd demo-scenario/Tutorials/beginner
docker-compose up
Beginner: Start from Scratch
In this section, both the swap-it-dashboard and the swap-it-process-agent are locally executed. Please consider the corresponding installation requirement of the corresponding code bases.
The swap-it-dashboard can be simply started with:
#clone the repository
git clone https://github.com/iml130/swap-it-dashboard.git
cd swap-it-dashboard
python3 application.py
Then the swap-it-dashboard can be opened with http://localhost:8080
Next, a process agent can be launched:
#clone the repository
https://github.com/FraunhoferIOSB/swap-it-execution-engine
cd swap-it-execution-engine
python3 main.py "opc.tcp://localhost:4841" "./PFDL_Examples/beginner.pfdl" "dashboard_host_address"="http://localhost:8080" "log_info"=True "number_default_clients"=5
Please consider to adjust the ResourceAssignment Structure within the PFDL description as followed:
ResourceAssignment
{
"job_resource":"opc.tcp://localhost:4840"
}
